Physics

SEMICONDUCTOR & ELECTRONICS TEST - 6

1 / 20

The following figure shows a AND logic gate circuit with two inputs A and B and the output C. The voltage waveforms of C will be -
निम्नलिखित चित्र में एक AND तर्क द्वार परिपथ को दिखाया गया है जिसमें दो निवेश A और B और एक निर्गत C हैं। C की वोल्टता का तरंग-रूप निम्न प्रकार होगा

2 / 20

Boolean algebra is essentially based on :–
बूलियन बीजगणित आवश्यक रूप से आधारित है

3 / 20

Identify the logic operation of the following logic circuit
निम्न तार्किक परिपथ के लिये तार्किक सक्रिया की पहचान कीजिये?

4 / 20

The minimum potential difference between the base and emitter required to switch a silicon transistor ‘ON’ is approximately :-
एक सिलिकॉन ट्रांजिस्टर को चालू (ऑन) करने के लिये आधार (बेस) और उत्सर्जक (एमिटर) के बीच आवश्यक न्यूनतम विभवान्तर लगभग होता है:

5 / 20

Which one of the following statement is false ?
निम्न में से कौनसा कथन असत्य है :

6 / 20

What is the output of these two combined gates?
निम्न दो द्वारों के संयोजन से प्राप्त निर्गत होगा ?

7 / 20

Out of the following, universal gate is :–
निम्न में से सार्वत्रिक द्वार कौनसा है।

8 / 20

A light emitting diode (LED) has a voltage drop of 2 volt across it and passes a current of 10 mA. When it operates with a 6 volt battery through a limiting resistor R. The value of R is :-
एक प्रकाश उत्सर्जक डायोड के पास 2 वोल्ट है, से 10mA की धारा प्रवाहित हो रही है। जब यह एक सीमान्त प्रतिरोधक R के साथ सम्बद्ध 6 वोल्ट की बैटरी से प्रचालित है। प्रतिरोधक R का मान है

9 / 20

When a p–n diode is reverse biased, then
जब एक p-n डायोड को पश्चदिशिक (रिवर्स) बायस किया जाता है, तो :

10 / 20

The voltage gain of an amplifier with 9% negative feedback is 10. The voltage gain without feedback will be :-
9% ऋणात्मक पुनर्निवेश होने पर एक प्रवर्धक का वोल्टता लाभ 10 होता है। बिना पुनर्निवेश के वोल्टता लाभ होगा :

11 / 20

A p-n photodiode is fabricated from a semiconductor with a band gap of 2.5 eV. It can detect a signal of wavelength :-
एक p-n फोटोडायोड को बैन्ड गैप (अन्तराल) 2.5 eV के अर्धचालक से बनाया गया है। यह किस तरंग दैर्ध्य के संकेत का संसूचन कर सकता है:

12 / 20

The circuit is equilvalent to:-
परिपथ समतुल्य होगा :

13 / 20

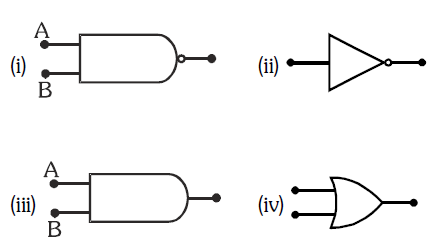

The symbolic representation of four logic gates are given below :The logic symbols for OR, NOT and NAND gates are respectively :-
चार तर्क द्वारों के संकेतात्मक परारूप यहाँ चित्रित हैं:OR, NOT और NAND द्वारों के संकेत क्रमानुसार है:

14 / 20

The device that can act as a complete electronic circuit is :
निम्न में से कौनसा पूर्ण इलेक्ट्रानिक परिपथ है

15 / 20

An amplifier has a voltage gain AV = 1000. The voltage gain in dB is :-
एक एम्प्लीफायर का वोल्टता लाभांक AV = 1000. है। वोल्टता लाभांक डेसीबल dB में है :

16 / 20

A transistor-oscillator using a resonant circuit with an inductor L (of negligible resistance) and a capacitor C in series produce oscillations of frequency f. If L is doubled and C is changed to 4C, the frequency will be :-
एक ट्रांजिस्टर- दोलक में अनुनादी परिपथ का प्रयोग किया गया है जिसमें प्रेरक L (प्रतिरोध मान नगण्य) और संधारित्र C को श्रृंखलाबद्ध जोड़ा गया है। इसमें आवृत्ति के दोलन पैदा होते हैं। यदि L को दुगुना कर दिया जाए और C को 4C में बदल दिया जाए, तो प्राप्त आवृत्ति का मान हो जाएगा :

17 / 20

Band energy gap of LED is :
LED का बेंड ऊर्जा अन्तराल होता है :

18 / 20

In the energy band diagram of a material shown below, the open circles and filled circles denote holes and electrons respectively. The material is :-
एक पदार्थ की इस ऊर्जा बैंड आकृति में छिद्रो को खुले वृत्तों में और इलैक्ट्रानों को काला भरे वृत्तो से दिखाया गया है। यह पदार्थ होगा :

19 / 20

The circuit given below represents which of logic operations :-
नीचे दिया गया परिपथ किस लॉजिक परिचालन (आपरेशन) को दर्शाता है :

20 / 20

In the following circuit, the output Y for all possible inputs A and B is expressed by the truth table :-
चित्र में प्रदर्शित परिपथ के लिये सभी सम्भव A और B निवेशीयों के लिये निर्गत Y को इनमें से किस सत्य सारणी द्वारा व्यक्त किया जा सकता है?

Your score is

The average score is 32%

0%




Welcome to the online physics test series for the NEET & JEE entrance exam. On this page you can find chapter wise physics mock tests for the NEET & JEE  exam. Practicing physics questions is very important as it helps in clear the concepts over a period of time. With these NEET & JEE physics questions, you can get a boost in your confidence when it comes to problem-solving in physics.

  • The test is of 20-minutes duration and it contains 20 Questions.
  • Practicing such tests would give you added confidence while attempting your exam.
  • Why wait to take the test and get an instant evaluation.
